Wooden door manufacturers, laminated Door
Introduction
Laminated doors are premium-quality doors known for their exceptional durability, strength, and elegant appearance. They are constructed with a sturdy framework of Pine Timber Lumber (SCL) rails and stiles, which provide superior structural stability and resistance to deformation.
The core material, reinforced with HDF crossbanding, ensures high bonding strength and long-term reliability. On the surface, a high-pressure decorative laminate is applied, giving the door a smooth, stylish, and easy-to-maintain finish that resists scratches, stains, and moisture. The laminate stile edges enhance protection against chipping while offering a clean, seamless look. These doors are designed to blend aesthetics with functionality, making them suitable for both residential and commercial interiors.
Their innovative composition ensures dimensional accuracy, thermal stability, and a premium feel, delivering a perfect combination of performance and sophistication for modern architectural spaces.
USP

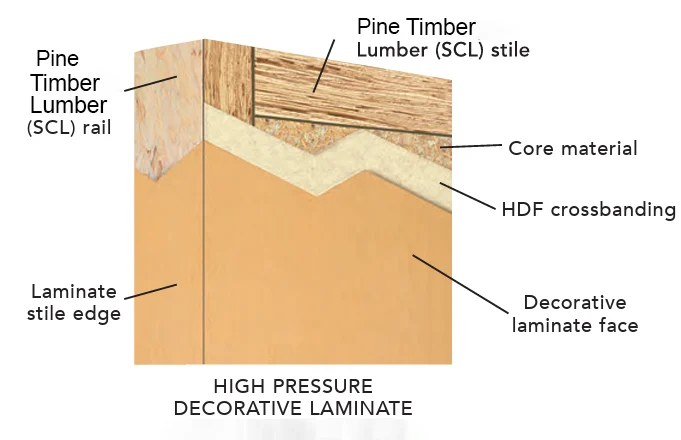

Laminate doors Construction
Key Features
Pine Timber Lumber (SCL) Rail – Provides strong structural support and stability.
Decorative Laminate Face – Enhances aesthetics with a premium surface finish.
Pine Timber Lumber (SCL) Stile – Ensures durability and frame rigidity.
Laminate Stile Edge – Protects edges and gives a neat, finished appearance.
Core Material – Acts as the central filling for strength and insulation.
High Pressure Decorative Laminate – Offers superior resistance to scratches, moisture, and wear.
HDF Crossbanding – Adds extra bonding strength and dimensional stability.
Technical Specification
| Name of the Test | As per Standard IS: 2202 | Result / Tolerance |
|---|---|---|
| Dimension | Length ±5mm Width ±5mm Thickness ±1mm Squareness Not more than 0.2% Edge Straightness Not more than 0.2% | ±3mm ±3mm 0.5 to +0.8mm 0.5% 0.8% |
| General Flatness Test | Twist ≤6mm Cupping ≤6mm Warping ≤6mm | 2.25mm 1.95mm 2.31mm |
| Local Planeness Test | Not more than 0.50mm | 0.32mm |
| Impact Indentation Test | No defect & depth of indentation not more than 0.20mm | 0.15mm |
| Flexure Test | Residual deflection ≤1/10th of max. deflection Maximum deflection ≤1/13th of Length | 2.07mm* 41.05mm* |
| Edge Loading Test | Residual deflection ≤0.50mm Maximum deflection ≤5mm | 0.21mm 3.31mm |
| Shock Resistance Test | No visible damage | Satisfactory |
| Buckling Test | Residual deflection ≤5mm Maximum deflection ≤500mm | 2.38mm 34.10mm |
| Screw Withdrawal Test | 1000N | 1400N |
| Slamming Test | No visible damage after 50 successive impacts | Satisfactory |
| Misuse Test | No permanent deformation after test | Satisfactory |
| End Immersion Test | No Delamination | Satisfactory |
| Knife Test | Min. Pass Standard | Excellent |
